WB3000

Air-Assist Waterborne Isolation System

The simple and reliable way to isolate waterborne coatings

Graco's WB3000 is the dependable way to isolate waterborne coatings when spraying with electrostatic equipment. Ideal for spray booth systems.

General Metal Finishing - Pumping
General Metal Finishing - Spraying

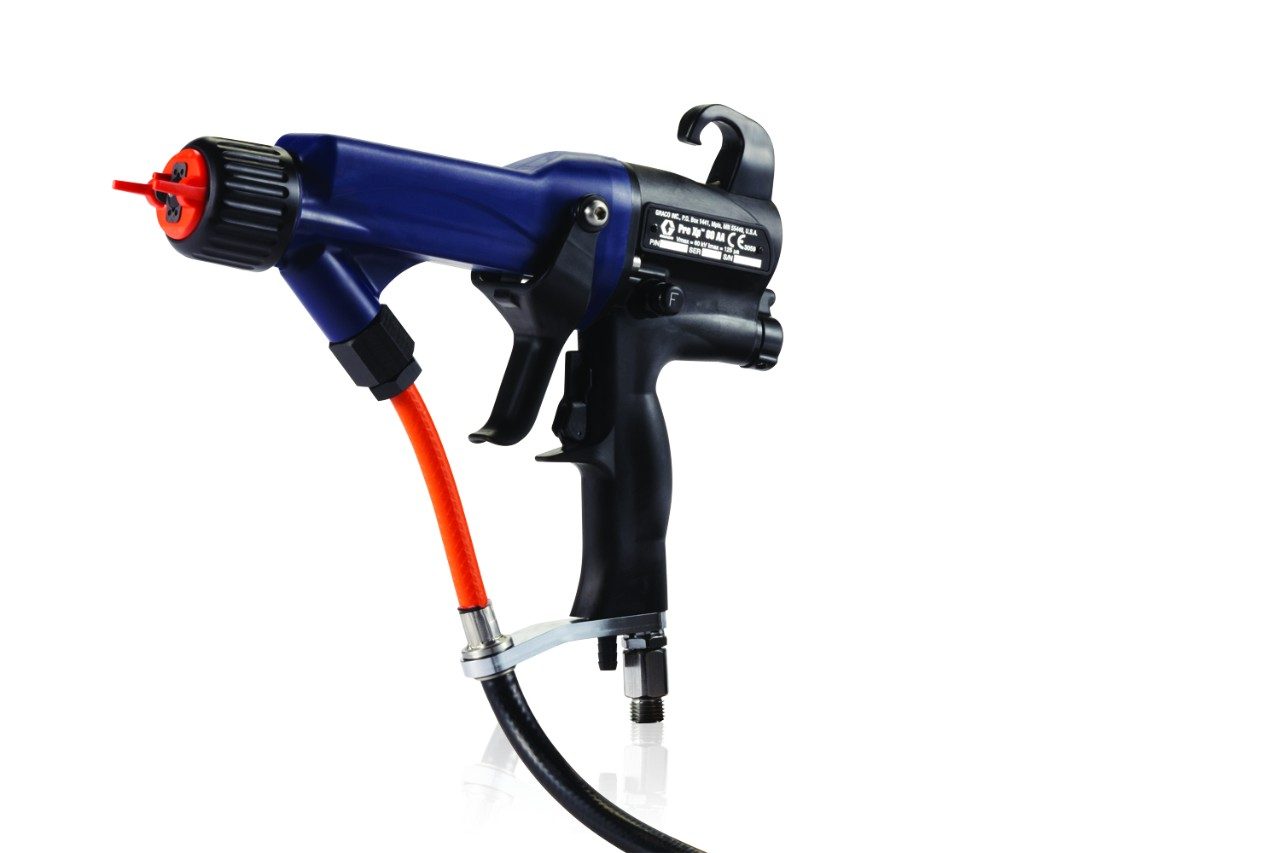

Ideal for high pressure waterborne material spraying with the Pro Xp60 AA WB gun for a superior finish quality and operator comfort

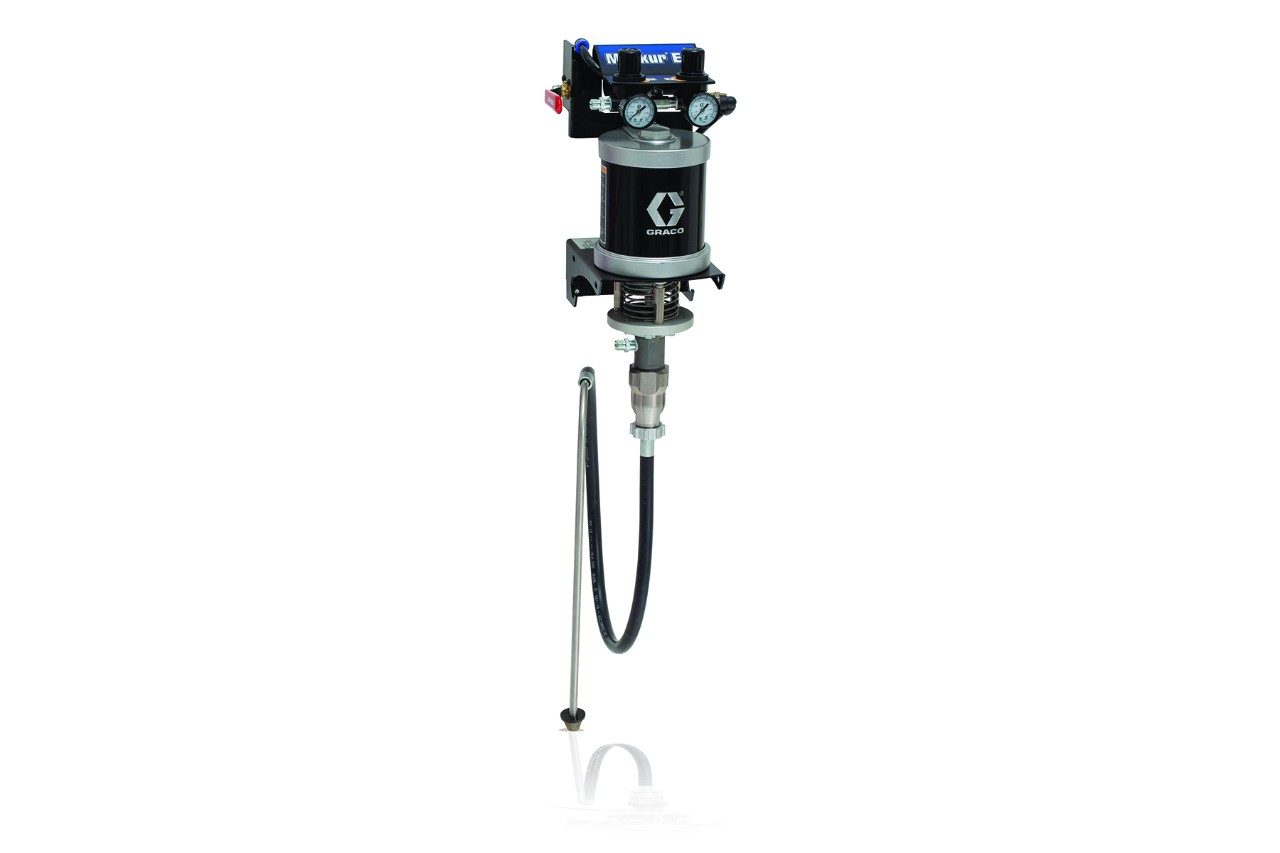

Merkur ES 30:1 pump is one of the most efficient sprayers designed to use less material and reduce air usage and pulsation
Standard voltage display allows for easy monitoring of voltage for overall performance
Simple 5 gallon (19 l) pail design is easy to color change and flush the system
Electrostatic gun Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
Portable cabinet increases mobility for a wide variety of applications

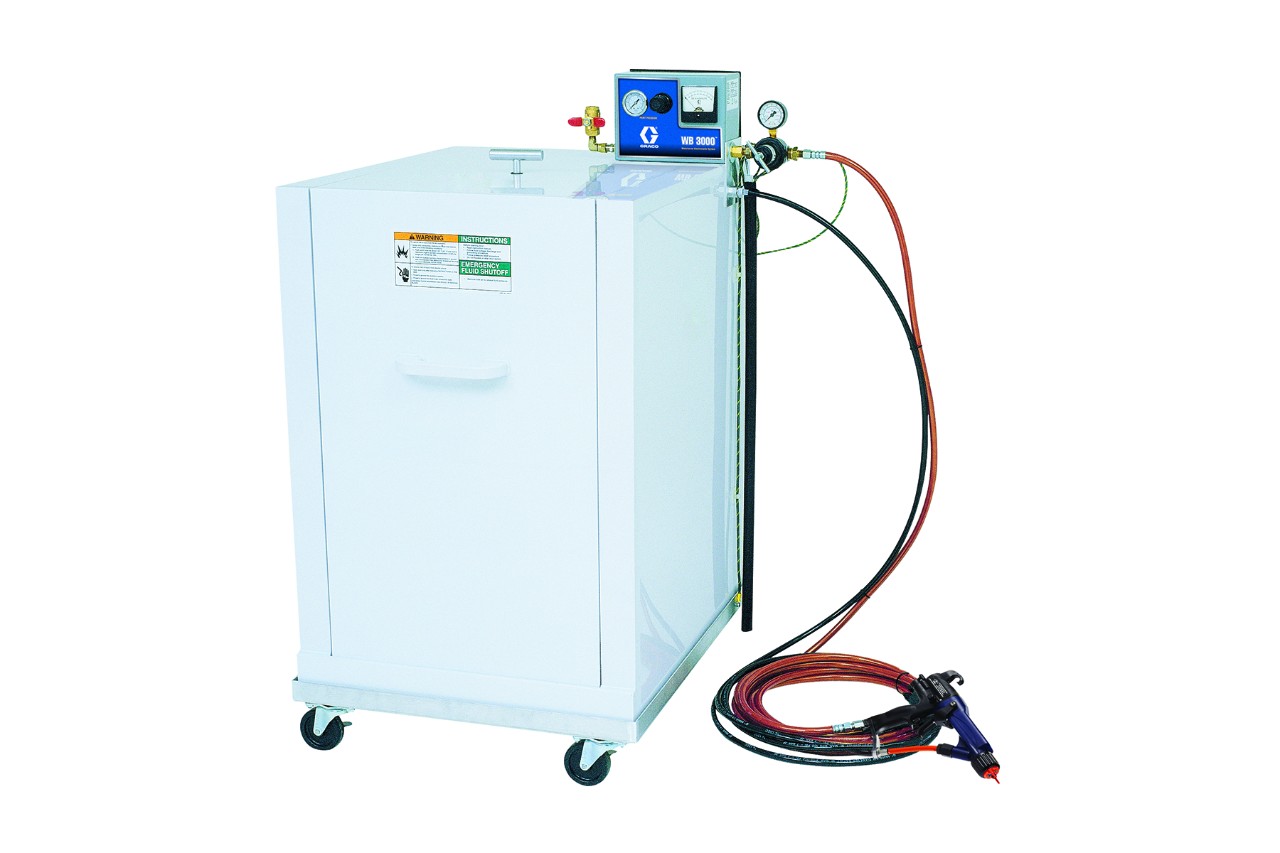

WB3000 Isolation System and Pro Xp 60 AA WB Gun
Maximum Working Fluid Pressure	3000 psi 21 MPa, 210 bar
Maximum Working Air Pressure	100 psi 0.7 MPa, 7.0 bar
Minimum Air Pressure at Gun Inlet	45 psi 0.32 MPa, 3.2 bar
Maximum Fluid Operating Temperature	120°F 48°C
Short Circuit Current Output	125 microamperes 125 microamperes
Voltage Output Energy	0.35 J with fluid hose 24M508 installed. H60T18: 60 kV. H60M18: 30–60 kV 0.35 J with fluid hose 24M508 installed. H60T18: 60 kV. H60M18: 30–60 kV
Sound Power (measured per ISO Standard 9216)	at 40 psi: 90.4 dB(A), at 100 psi: 105.4 dB(A) at 0.28 MPa, 2.8 bar: 90.4 dB(A), at 0.7 MPa, 7.0 bar: 105.4 dB(A)
Sound Pressure (measured 1 m from gun)	at 40 psi: 87.0 dB(A), at 100 psi: 99.0 dB(A) at 0.28 MPa, 2.8 bar: 87.0 dB(A), at 0.7 MPa, 7.0 bar: 99.0 dB(A)
Air Inlet Fitting	1/4 npsm(m) left-hand thread 1/4 npsm(m) left-hand thread
Fluid Inlet Fitting	Custom inlet for Graco waterborne fluid hose. Custom inlet for Graco waterborne fluid hose.
Isolation Enclosure Air Inlet Fitting	1/4 npt 1/4 npt
Isolation Enclosure Fluid Inlet Fitting	3/8 in. OD tube fitting 10 mm OD tube fitting
Wetted Parts	Gun: Stainless Steel, PEEK, UHMWPE, Fluoroelastomer, Acetal, Nylon, Polyethylene, Tungsten Wire. Waterborne Fluid Hose: PTFE. Suction Tube: Polyethylene, Stainless Steel. Merkur Pump: See manual 3A0732. Gun: Stainless Steel, PEEK, UHMWPE, Fluoroelastomer, Acetal, Nylon, Polyethylene, Tungsten Wire. Waterborne Fluid Hose: PTFE. Suction Tube: Polyethylene, Stainless Steel. Merkur Pump: See manual 3A0732.
